Standard Attachment Sets are offered to re-attach an existing chainwheel to a valve and wheel as a part of regular maintenance. Once a chainwheel is removed from the valve hand wheel, it is recommended that new attachment sets are used. Included in each set are zinc-plated carbon steel attachments and fasteners needed to attach the chainwheel to the hand wheel.
Click here to view installation instructions for chainwheels.
Each size attachment set comes with different components. Click on the part numbers below to view the included components:
| Chainwheel Number | Part Number | Weight (lbs.) |
|---|---|---|

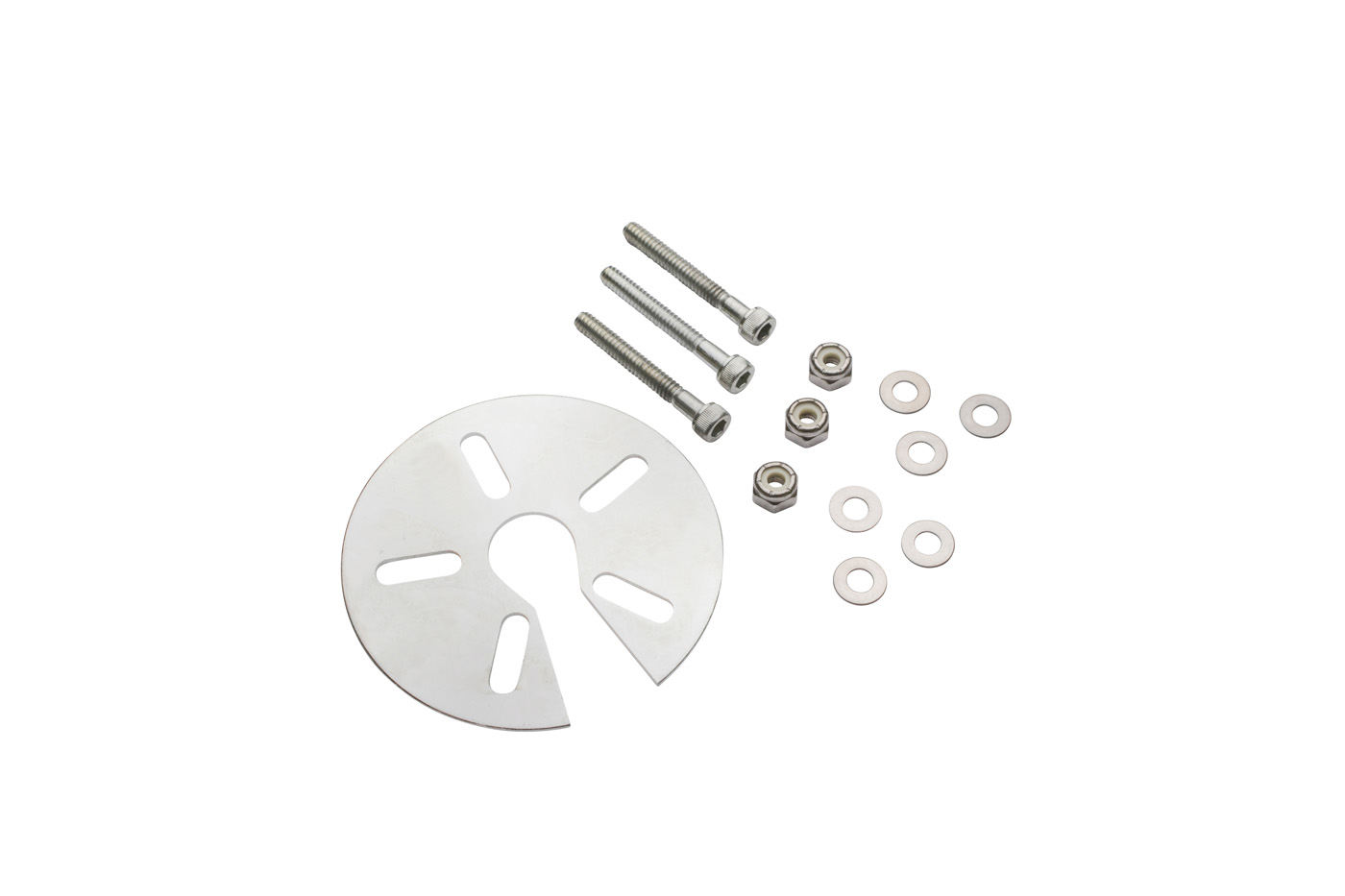

| 0 | ATSTL-0 | .15 |

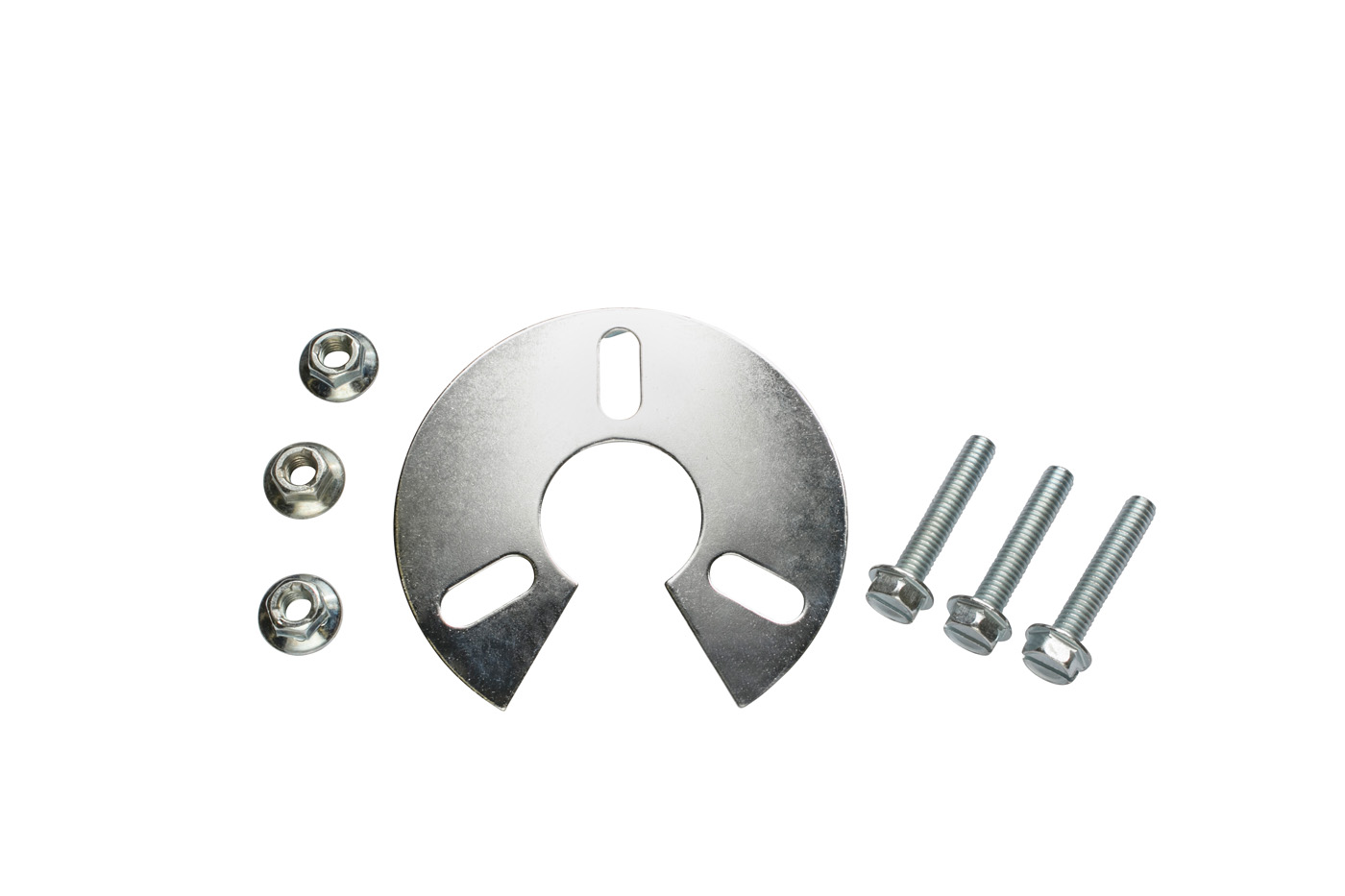

| 1 | ATSTL-1 | .35 |

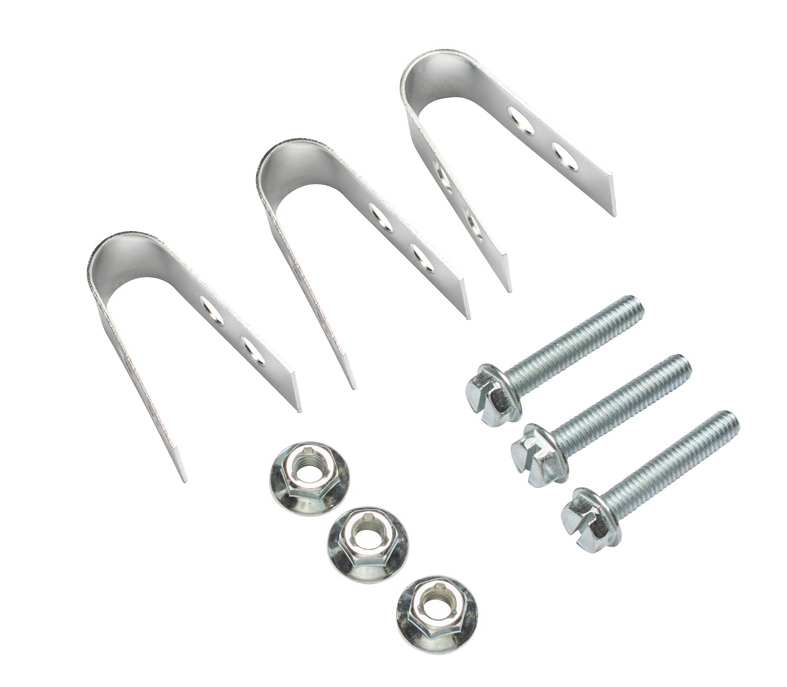

| 1.5 | ATSTL-1.5 | .40 |

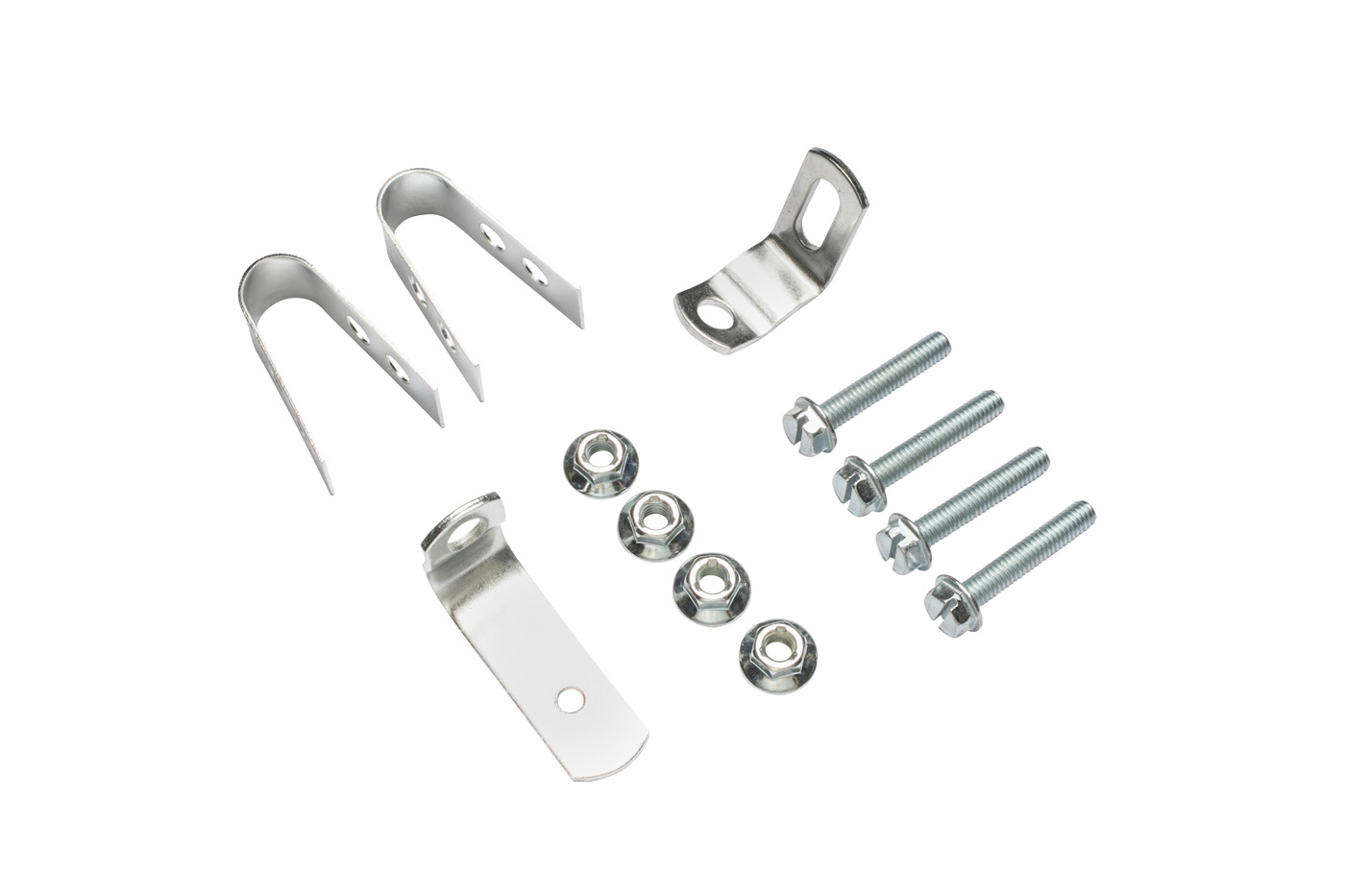

| 2 | ATSTL-2 | .55 |

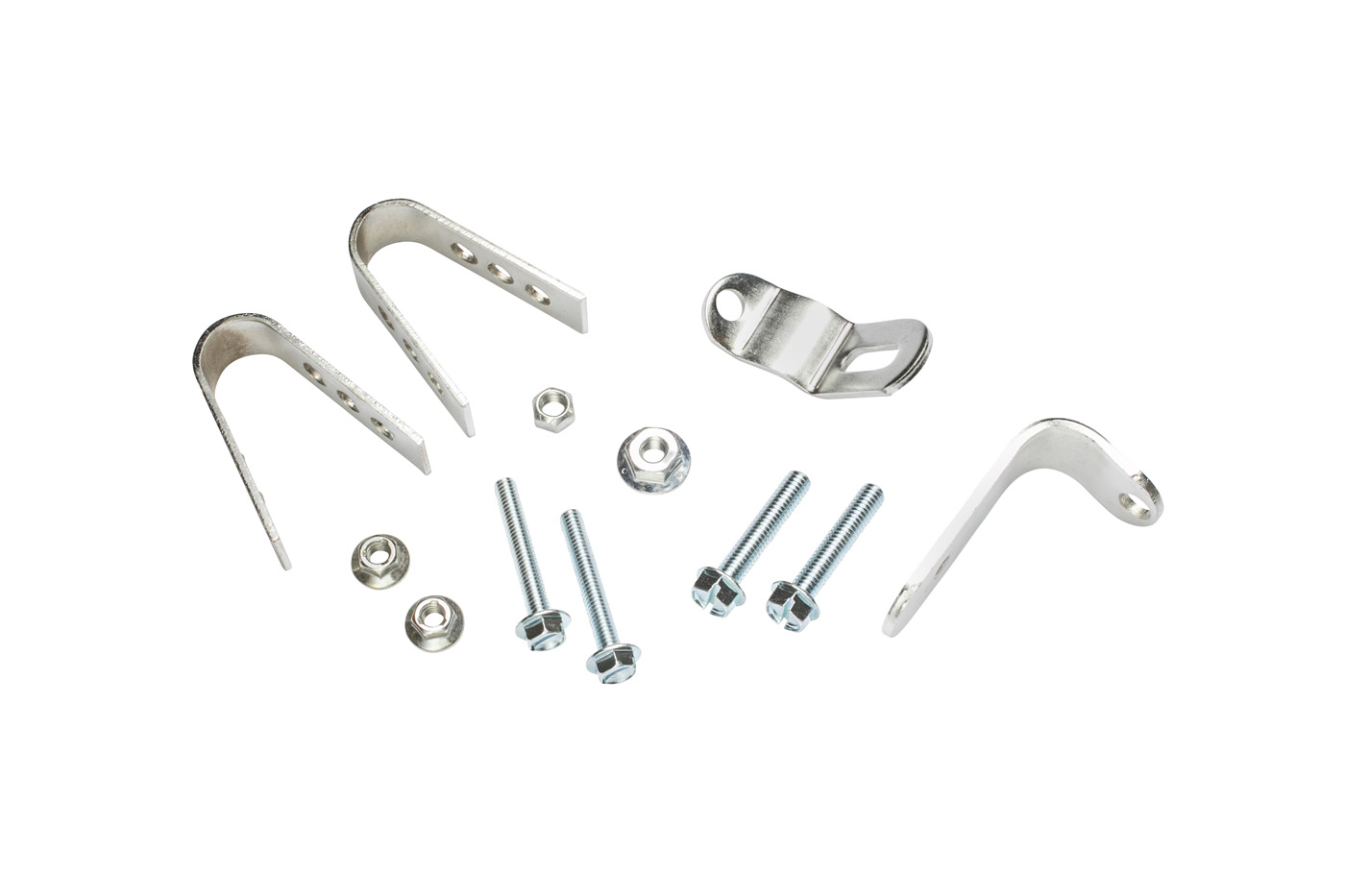

| 2.5, 3, 3.5 | ATSTL-2.5 | 1.25 |

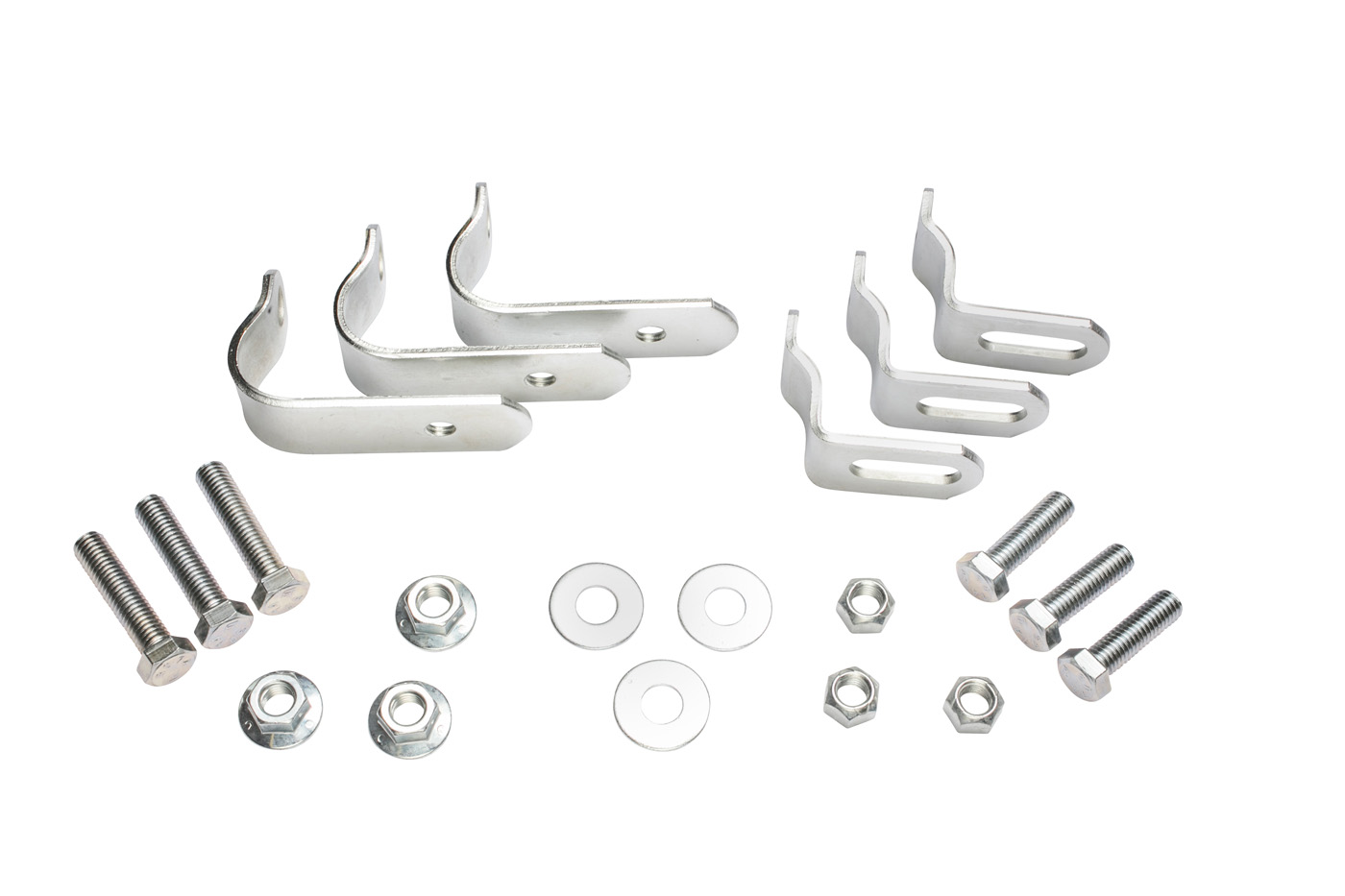

| 4, 4.5, 5 | ATSTL-4 | 3.45 |

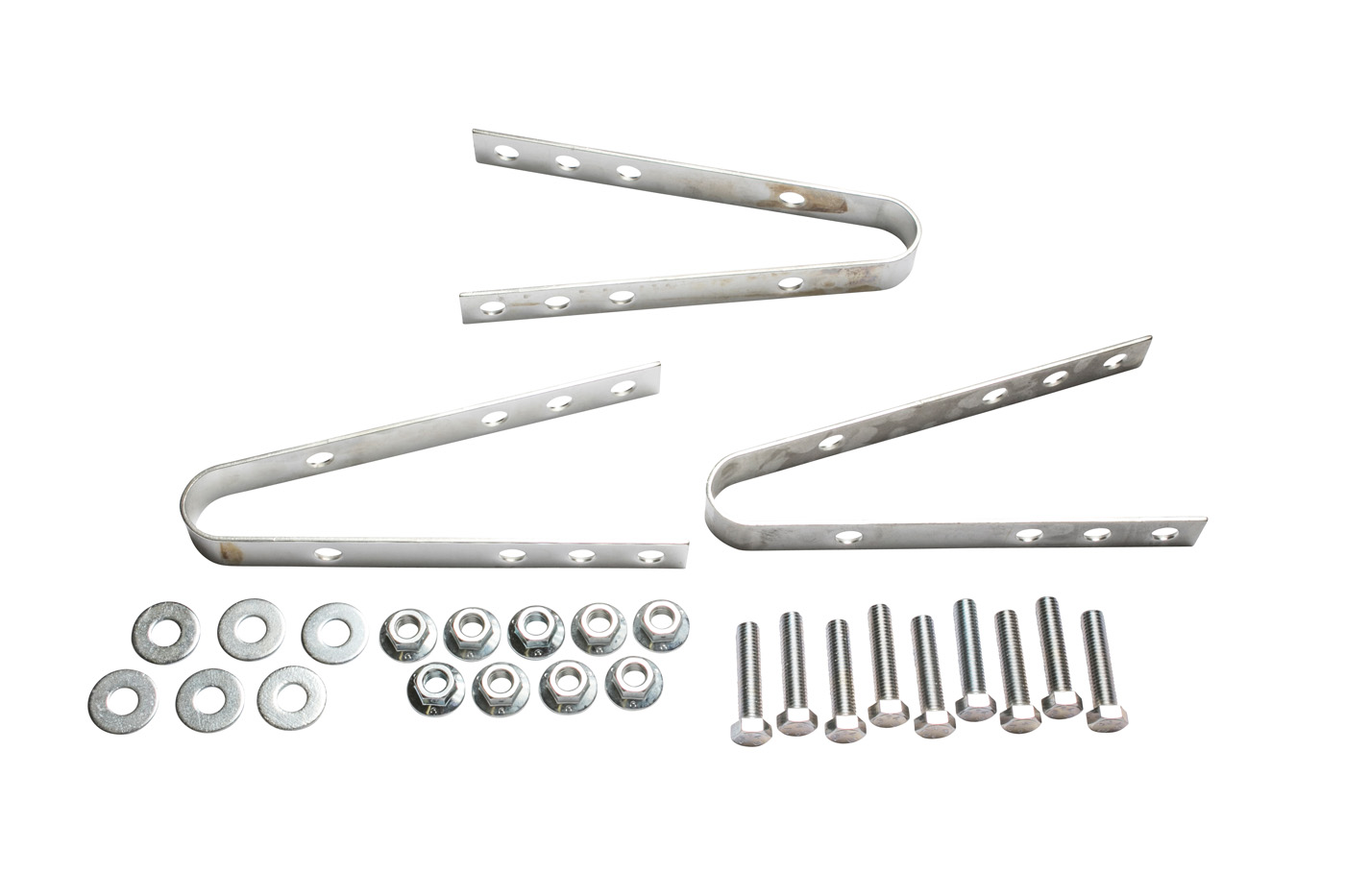

| XLONG 36” | ATSTL-SP4 | 3.95 |
