Our weldless chain is designed for use on all chainwheels excluding pocketwheels. Weldless chain is sometimes referred to as single loop lock link chain.
Chain is required for chainwheel operation but is not included in the price due to varying length requirements. To determine the correct length of chain, refer to the table on the Technical Data page. A Babbitt Masterlink is suggested for this style chain to return the chain to its original load bearing strength.
Available in the following materials:

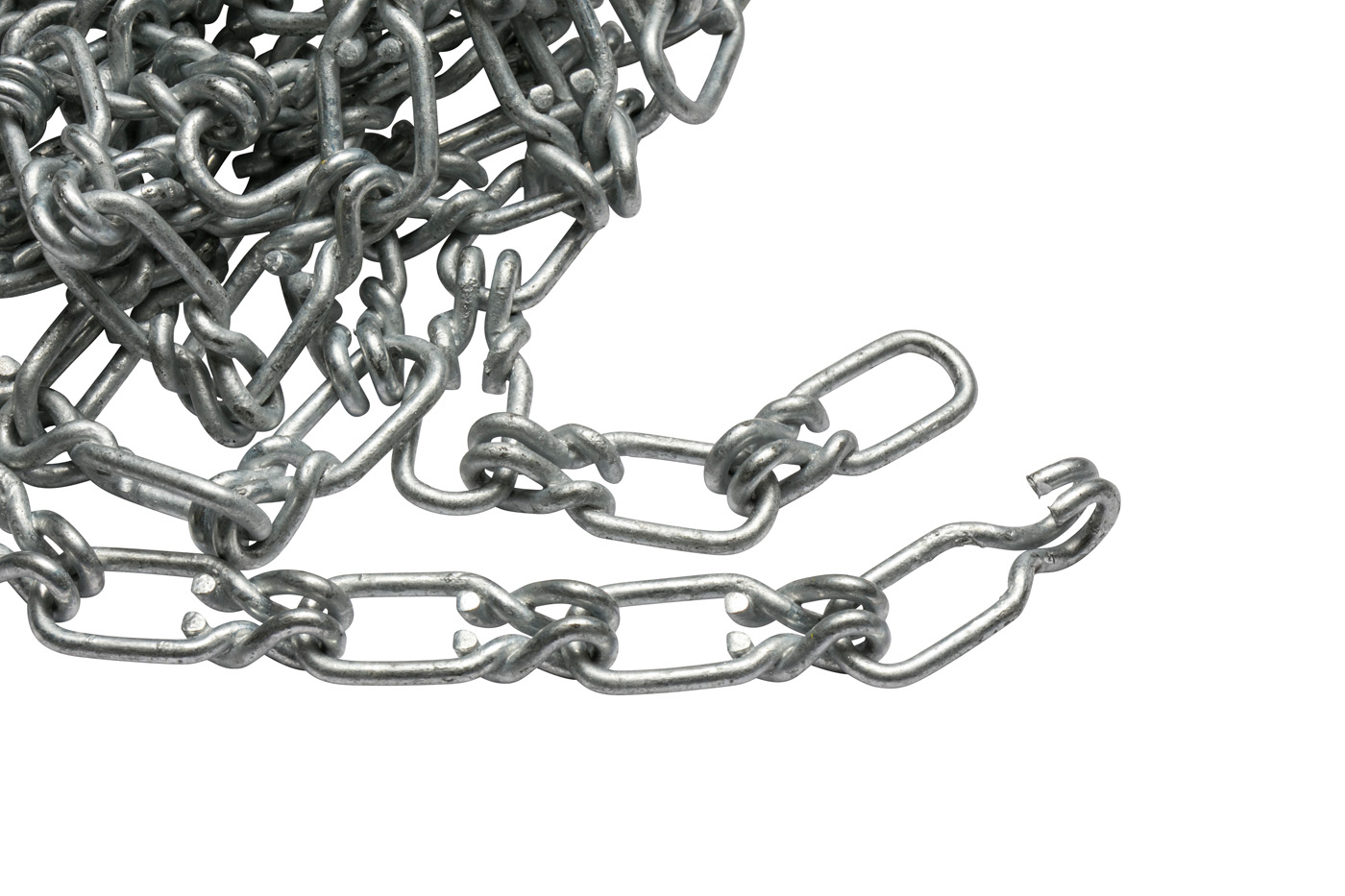

- Galvanized Weldless Chain is our standard chain and is recommended for all chainwheels in non-corrosive environments.

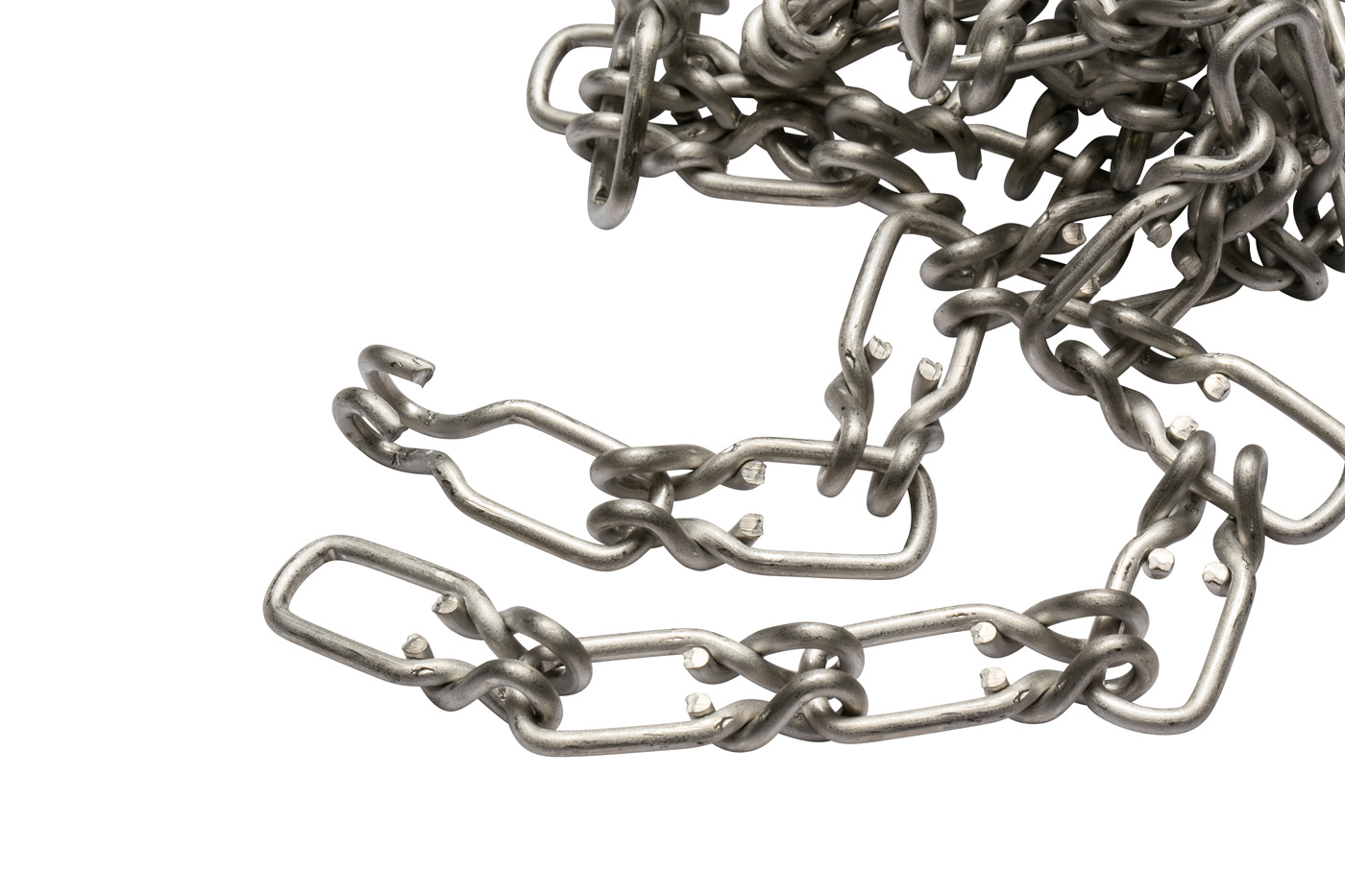

- Stainless Steel Weldless Chain is recommended for all standard chainwheels in corrosive environments.

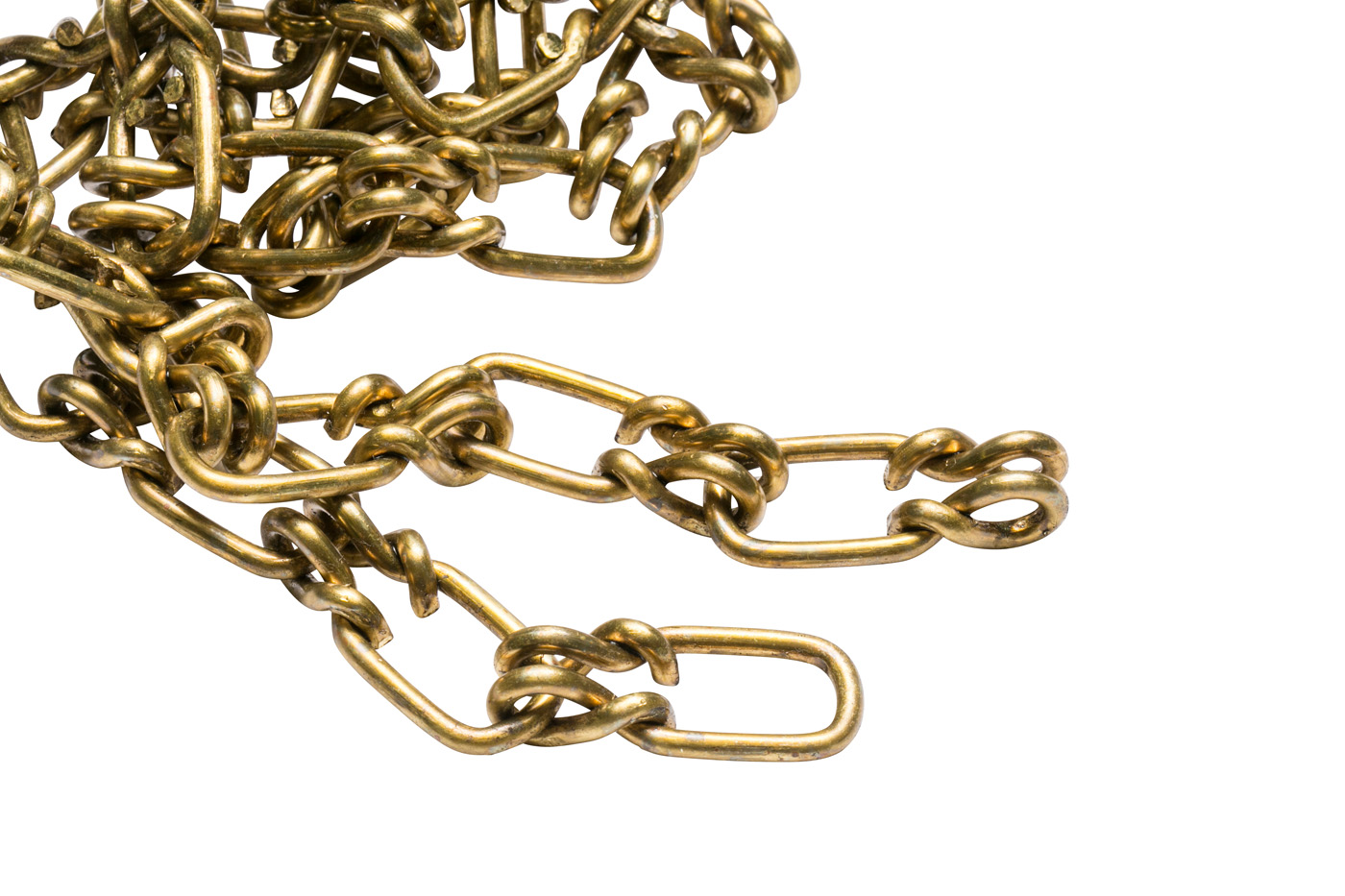

- Brass Weldless Chain is recommended for all standard chainwheels that require a spark resistant chain.
| Chainwheel Number | Trade Size | Weight / 100 ft. (lbs.) | Galvanized Part # | Stainless Part # | Brass Part # |
|---|---|---|---|---|---|
| 0 | 2 | 10 | GC-0 | SC-0 | BC-0 |
| 1, 1.5, 2 | 1/0 | 17.5 | GC-1 | SC-1 | BC-1 |
| 2.5, 3, 3.5 | 4/0 | 30 | GC-2.5 | SC-2.5 | BC-2.5 |
| 4, 4.5, 5 | 5/0 | 35 | GC-4 | SC-4 | BC-4 |
